LC Racing

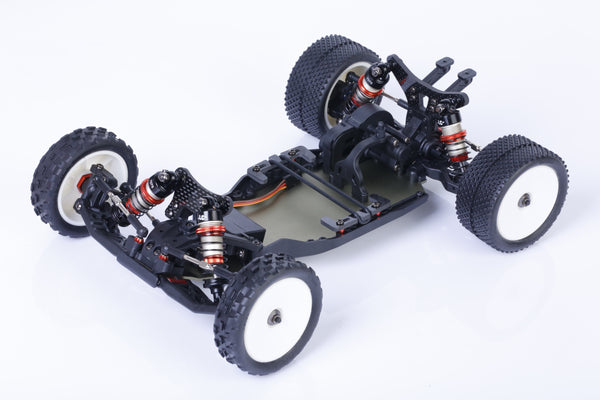

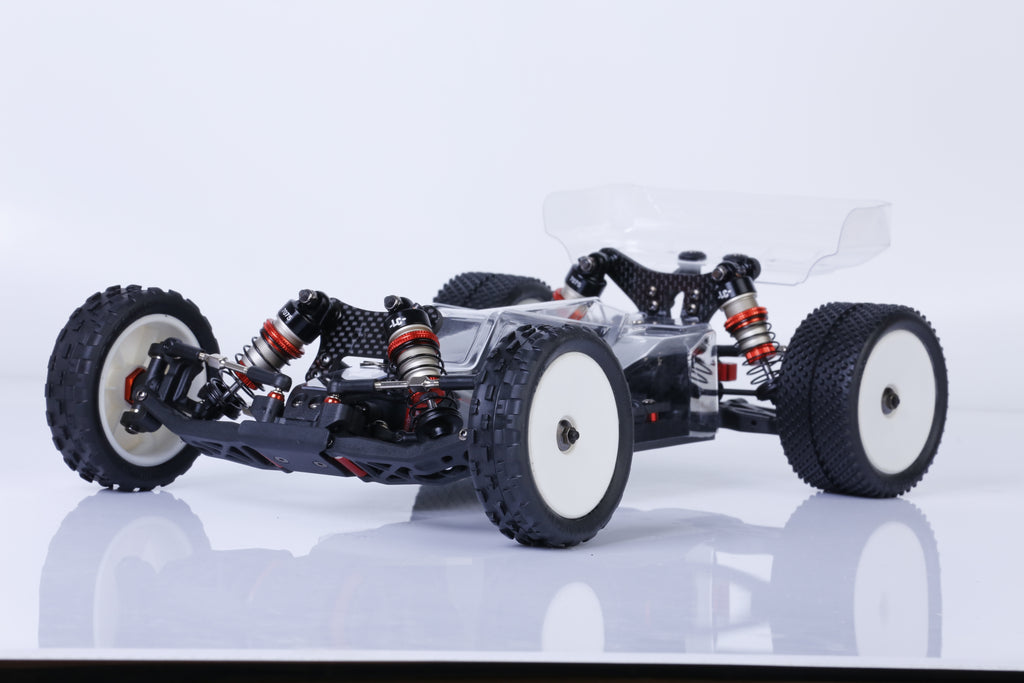

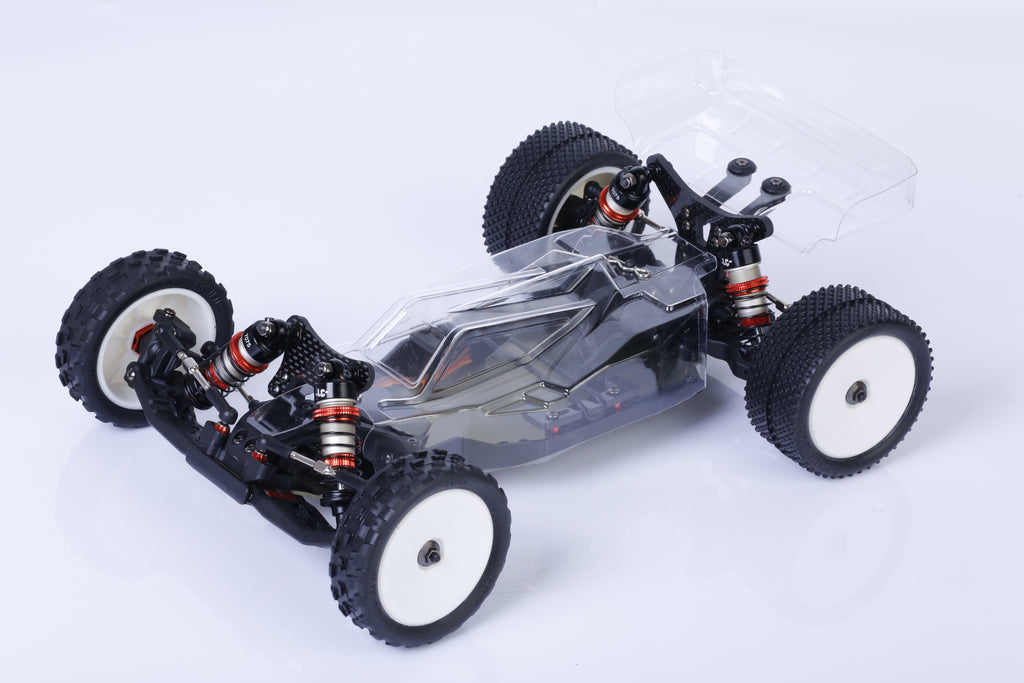

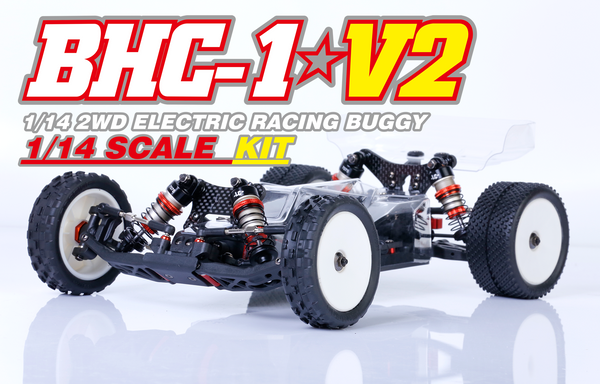

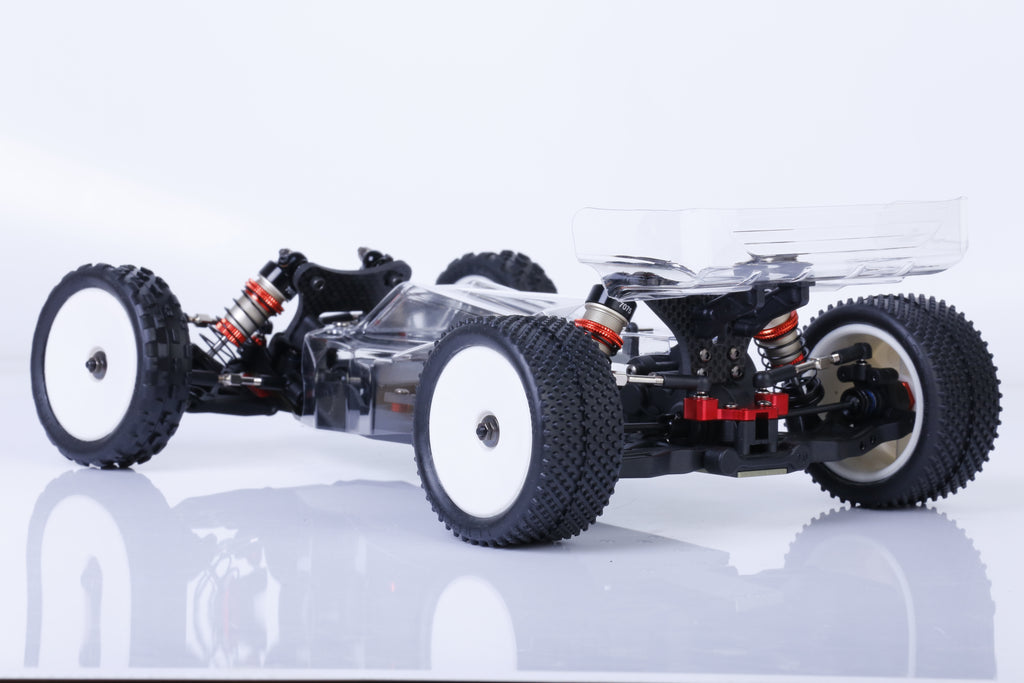

BHC-1 V2 1/14 2WD Buggy - Kit
BHC-1 V2 1/14 2WD Buggy - Kit
(Free Shipping)
Regular price
$229.00
Note:
This product is sold as a kit which requires assembly
This product is sold as a kit which requires assembly
WHAT'S NEW!

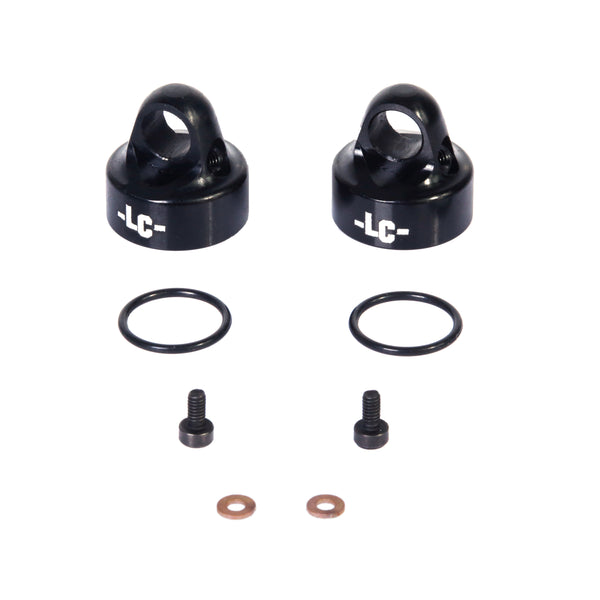

1. Emulsion Shock System - New 7075 Alum Shock Cap without the need for a shock diaphragm L6286
1. Emulsion Shock System - New 7075 Alum Shock Cap without the need for a shock diaphragm L6286
2. Shock Shaft O-rings with option to use one or two o-rings per shock body depending on track condition - New smoother 60° Silicone Shock Shaft O-rings L6287
3. Battery Holder - New Carbon Fiber Battery Holder L5089
4. Gear box - New V2 Gearbox, more rigid, better fit, better seal L5078
3. Battery Holder - New Carbon Fiber Battery Holder L5089
4. Gear box - New V2 Gearbox, more rigid, better fit, better seal L5078
5. Body Shell - Updated body shell design for better high speed grip and steering response L5090
6. Turnbuckles - Updated turnbuckles that accepts 4mm turnbuckle wrenches L5083 and L5084

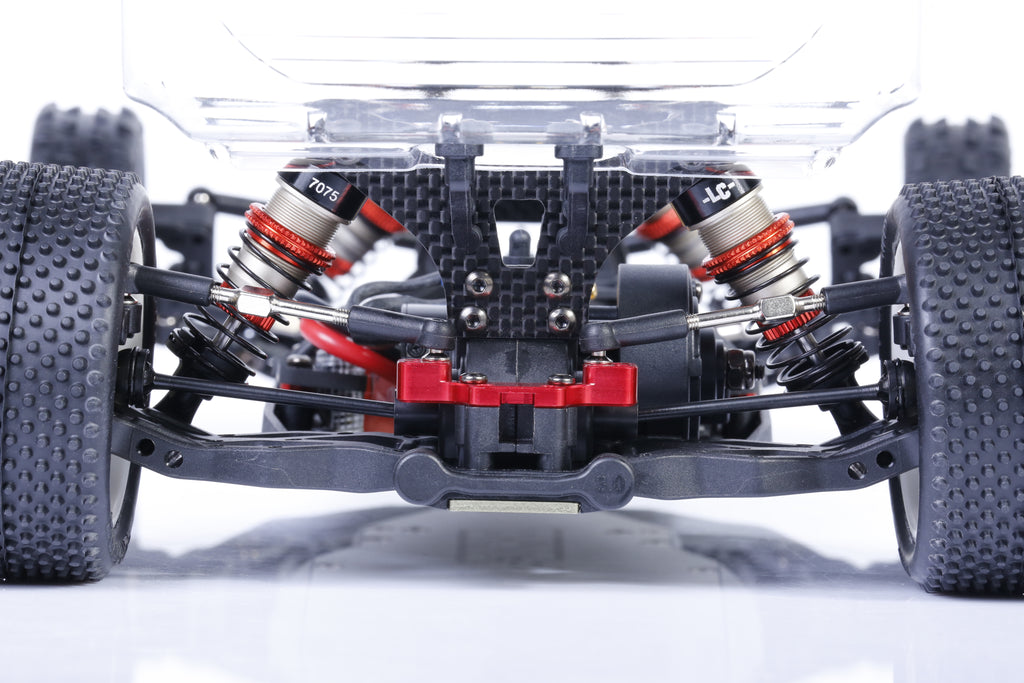

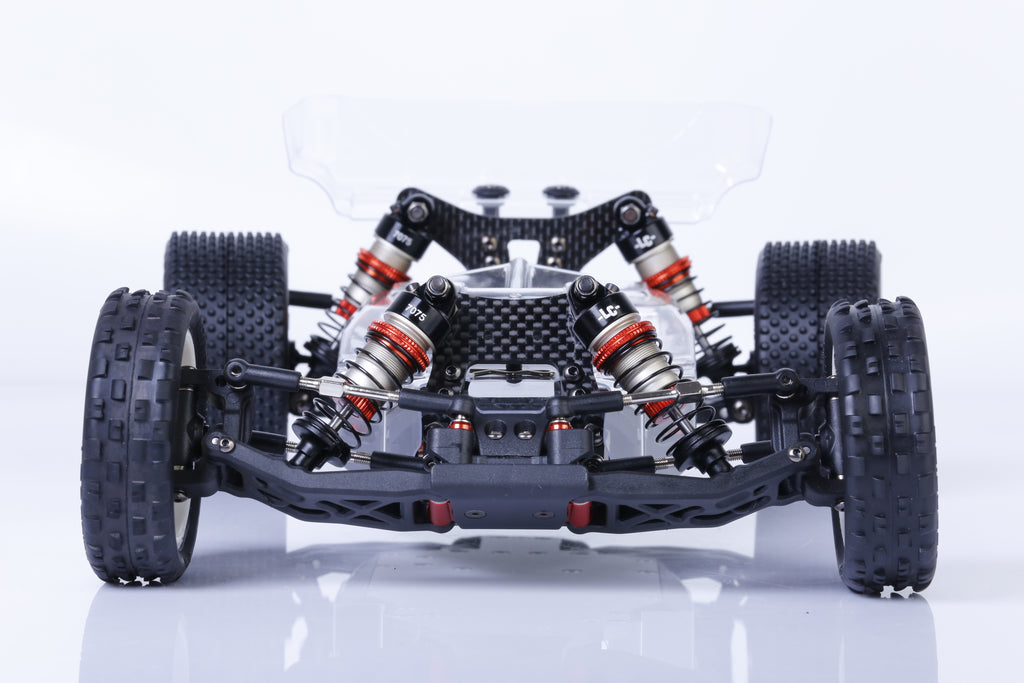

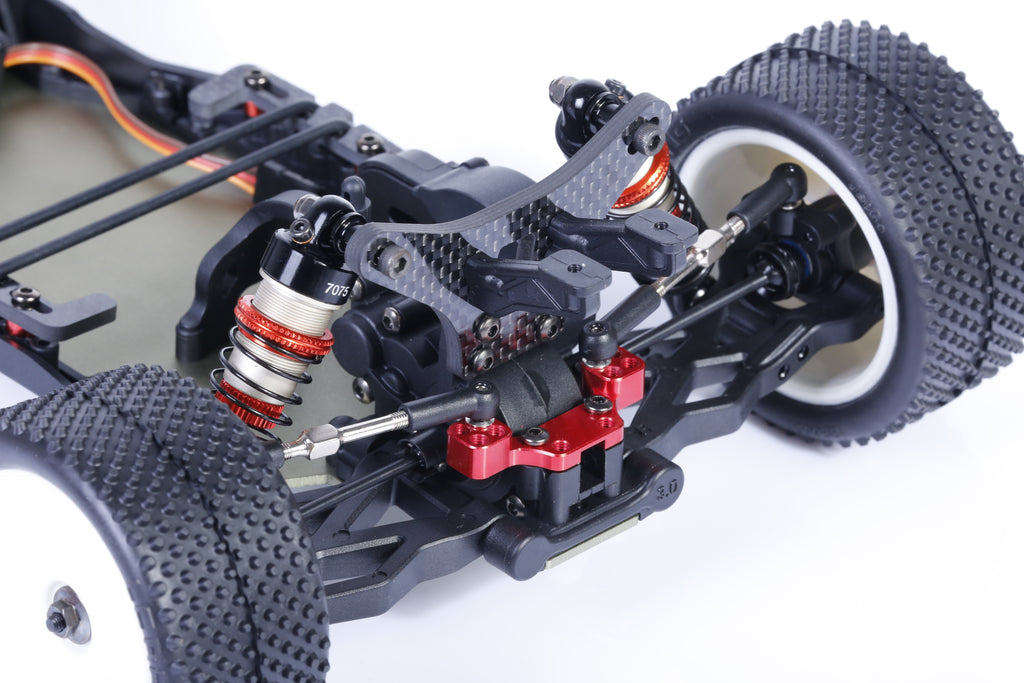

7. Shock Towers - New Carbon Fiber Front Shock Towers Front L5081 and Rear L5082
6. Turnbuckles - Updated turnbuckles that accepts 4mm turnbuckle wrenches L5083 and L5084
7. Shock Towers - New Carbon Fiber Front Shock Towers Front L5081 and Rear L5082

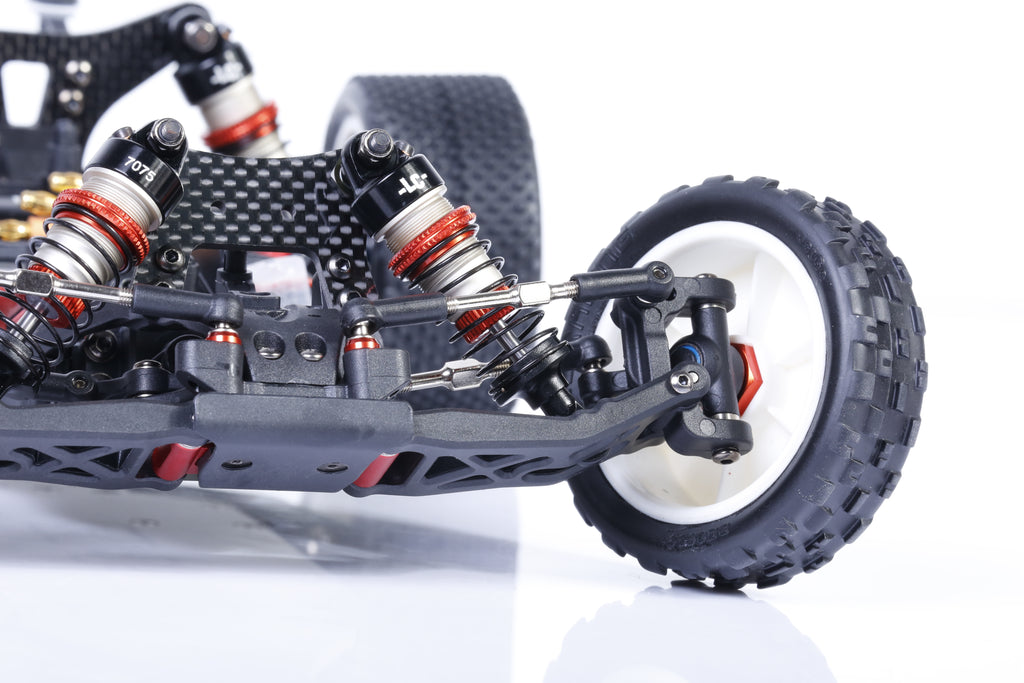

8. Suspension Geometry - Revised Front L5087 and Rear L5088 Inner Chamber Link Mounts for a higher inner chamber link position
Includes:
SPECIFICATIONS:
Disclaimer:
1. LC Racing engineered carpet/astro turf tire set.
2. Alum Threaded Oil-filled Big-bore Shocks
3. Carbon Fiber Shock Towers
4. Rear Competition Grade Oil-filled Gear Differential with Metal-Gears
5. Steel Hinge-pins

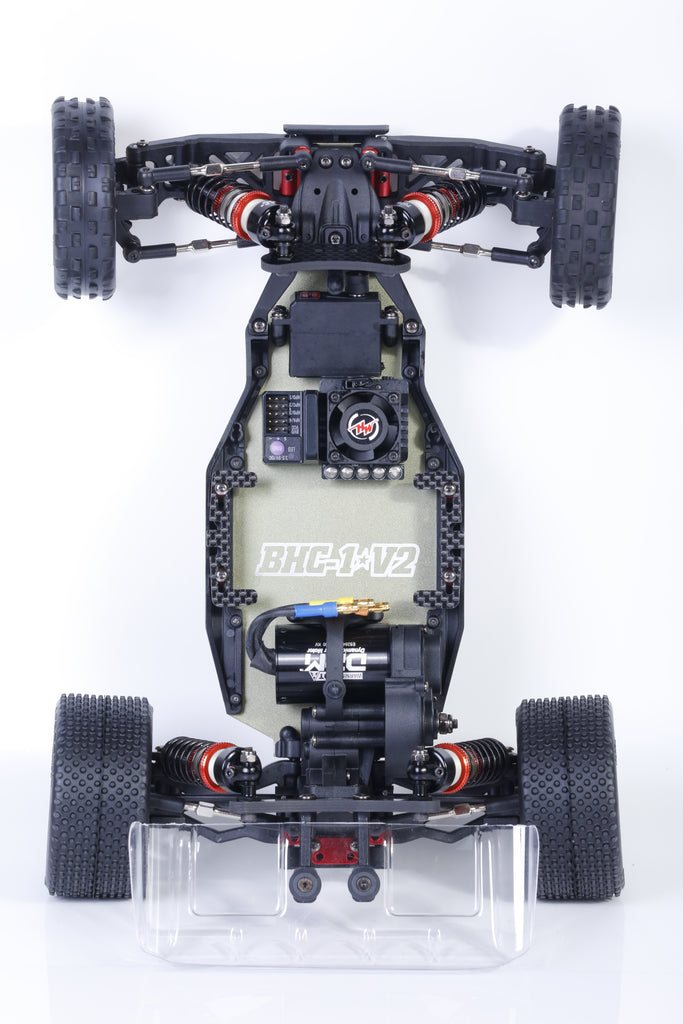

6. 2.0mm Anodized Aluminum Chassis with Front Kick-up and Side Guards
7. Anodized 7075-T6 Aluminum Motor Mount
8. Alum 12mm Wheel Hexes (Width: 5.0mm)
9. Adjustable Slipper Clutch
2. Alum Threaded Oil-filled Big-bore Shocks
3. Carbon Fiber Shock Towers
4. Rear Competition Grade Oil-filled Gear Differential with Metal-Gears
5. Steel Hinge-pins
6. 2.0mm Anodized Aluminum Chassis with Front Kick-up and Side Guards
7. Anodized 7075-T6 Aluminum Motor Mount
8. Alum 12mm Wheel Hexes (Width: 5.0mm)
9. Adjustable Slipper Clutch
10. Batan D116F Digital High Speed Metal Gear Servo
11. Clear polycarbonate race body
Speed Controller, Motor, Battery, Transmitter & Receiver NOT INCLUDED!!
SPECIFICATIONS:
Scale: 1/14
Width: 190mm
Wheelbase: 210mm

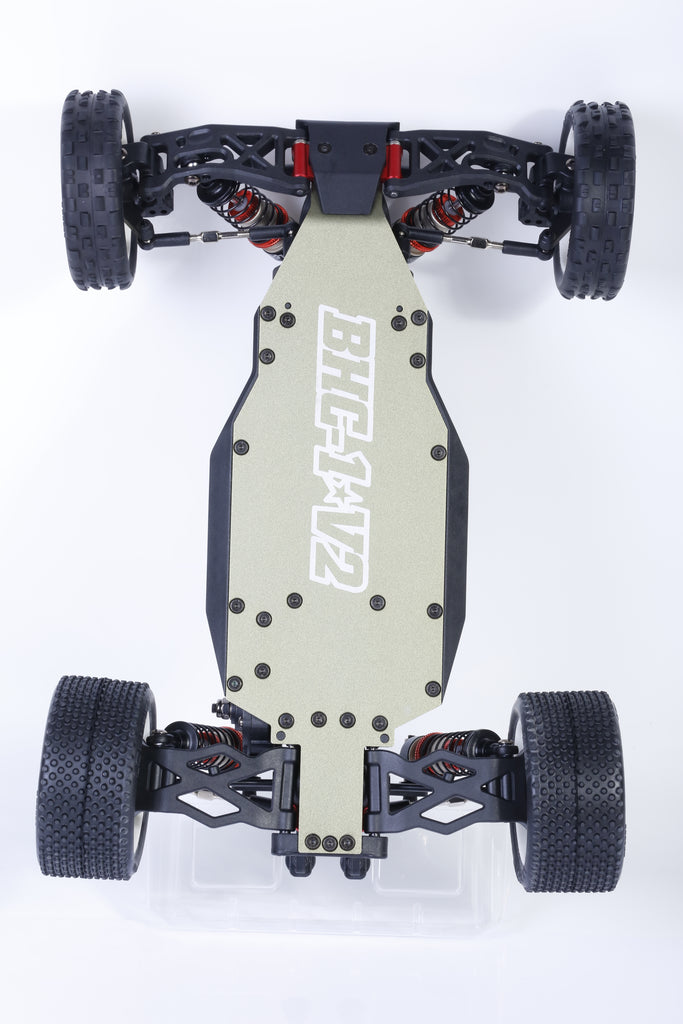

Chassis: 2.0mm anodized aluminum
Gear ratio: 2.5:1
Ball bearings: Fully ball raced
Body: UnpaintedWidth: 190mm
Wheelbase: 210mm
Chassis: 2.0mm anodized aluminum
Gear ratio: 2.5:1
Ball bearings: Fully ball raced
You will need:
- Transmitter and Receiver
- ESC and Brushless Motor

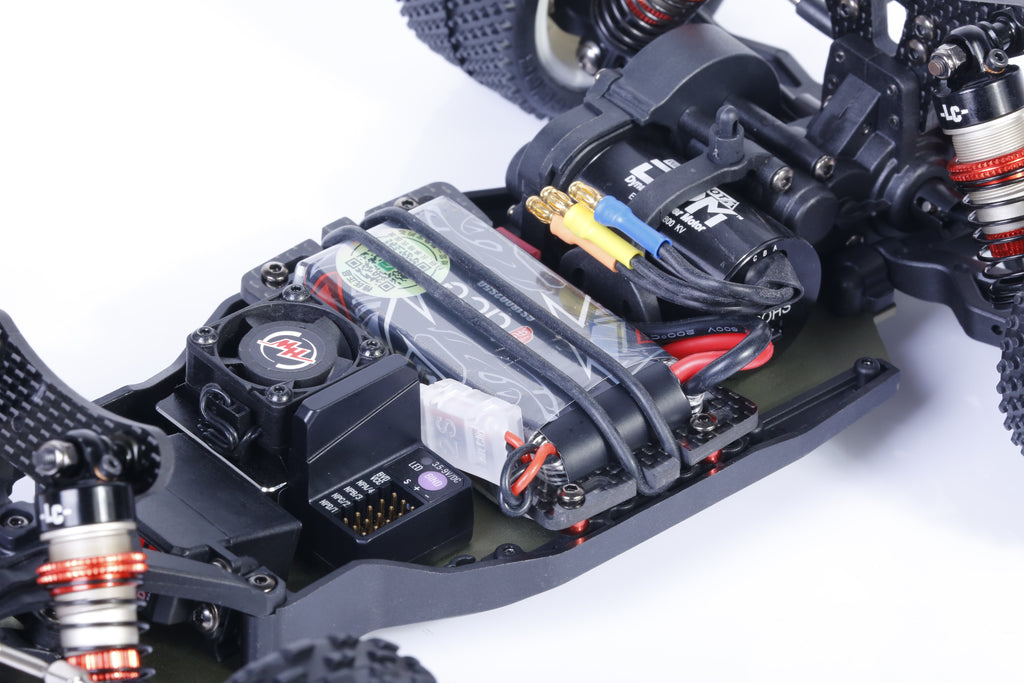

- Battery 70x36mm Lipo and Charger
- Gear Differential Oil
- Shock Oil
- Assembly tools
- Paint for lexan/polycarbonate body
Recommended Brushless Motors:
Sensorless LCE008, LCE009, LCE010, LCE011, LCE014,
Sensored LCE013, LCE015, LCE018, LCE019
Sensored LCE013, LCE015, LCE018, LCE019
Available at https://shop.lcracing.net/collections/motors
Disclaimer:
Due to on going product developments, actual product may vary slightly with photos and descriptions listed on this page.
